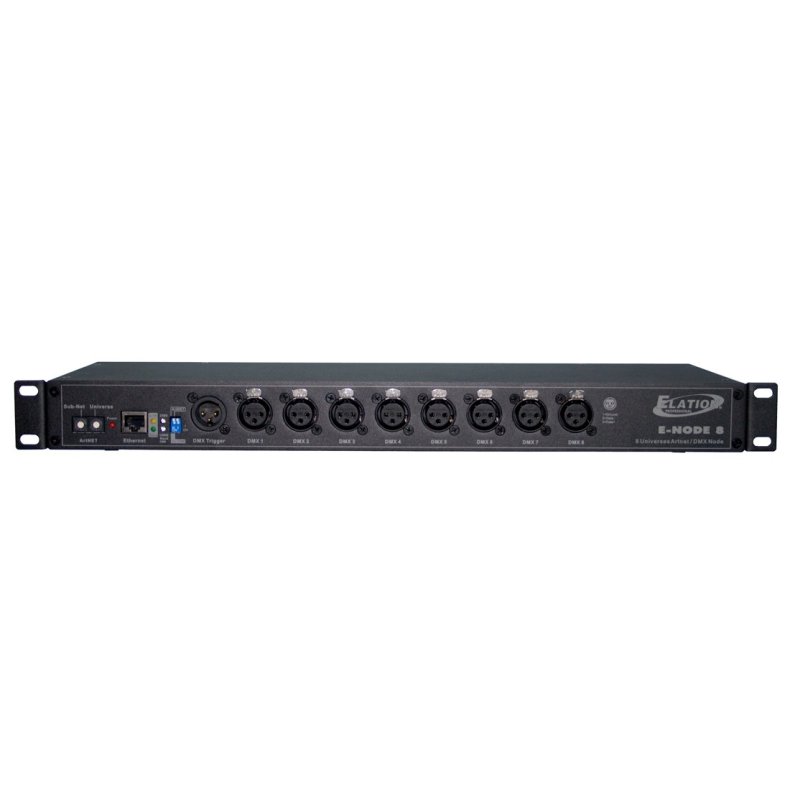

The E-Node 8 is affordable ethernet/artnet node providing an ethernet input to 8 DMX512 Universe output.
- Standard DMX-512 and High Speed DMX-1000K(1M) protocol compatible.
- With network control, supporting TCP/IP, Artnet and CL100M protocol.
- Fixed built-in 128 memory CHIP allows to hold DMX data files.
- Up to 32 Shows can be created,
- With a real-time record function.
- Astronomical time color schedule event table.
- DMX trigger function available with DTC-512 or USB-cable trigger.
- Configuration software runs with PC platform via Rj45
- Power input AC 100-240V, 50/60Hz
- Data input RJ45 socket for Ethernet and 3-pin XLR male
- Data output 8pcs of 3-pin XLR female socket
- Housing sheet metal black powder finish
- Ingress preotection ratinig IP20
- Driver output signal DMX-512 (1990) / DMX-1000K
- Ethernet protocolTCP/IP
- ArtNet connection
- 3-pin XLR
- Listing CE certified
- Operation temperature -10 degC to +50 degC
- Storage temperature -20 degC to +70 degC
- Dimension (LxWxH):1U 19"" rack mount, 482x205x44mm
- Weight 1.5kg
